321

SKU:
321 Series

Description

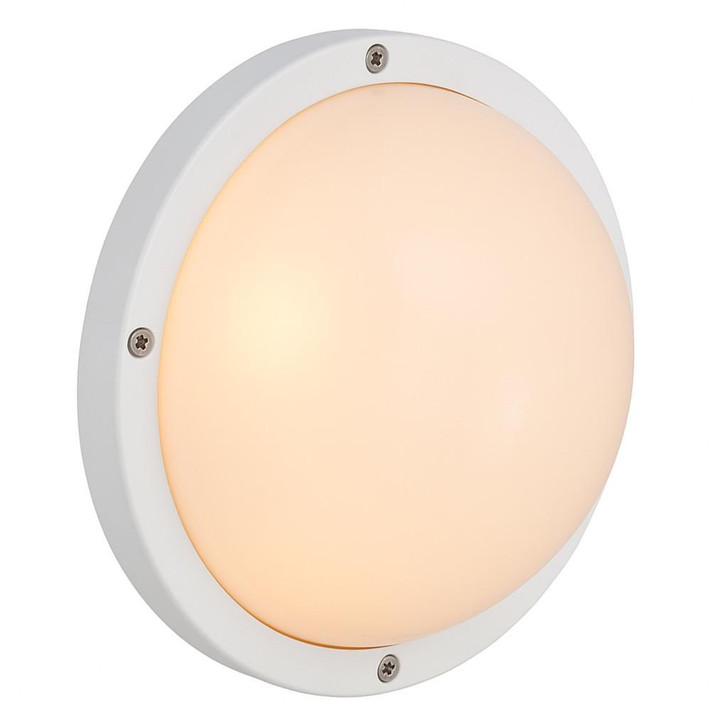

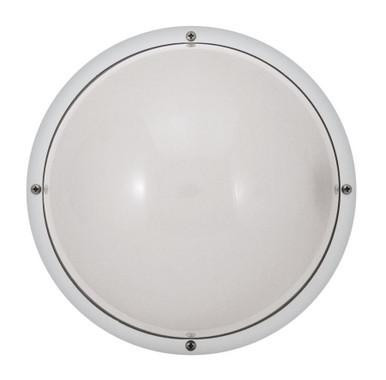

Nautical Marine Open Frame Corrosion & Impact Resistant Bulkhead

Incon Lighting's 320 series adds a contemporary bulkhead look to any outdoor space. This light fixture can be used to comply with 2016 Title 24 Part 6 High Efficacy LED Light Source Requirements. Incon's 320 series is designed for wall or ceiling applications and mounting hardware is included. Options include 120V photocell.  Click Here to see the entire family of the Beacon line.

Features

  • White Powder-Coated Aluminum Pan (LED Models)
  • Composite Polycarbonate Pan (E26 Medium Base Models)
  • Frosted Reduced Glare Polycarbonate Lens
  • Composite Open Frame
  • Mounting Hardware Included
  • Wall or Ceiling Mount
  • Minimum Starting Temp -20ºF
  • UL Listed for Wet Locations
  • 5 Year Warranty LED
  • 3 Year Warranty E26 Medium Base
  • Dimmable (Integrated LED 120V Models Only)
  • Energy Star Listed (All Integrated LED Models)
  • Made in the USA Compliant

Integrated LED 120V System (80CRI)

  • 13W Integrated LED
    • 3000K - 1,140lm
    • 4000K - 1,280lm
  • 14W Integrated LED
    • 3000K - 1,430lm
    • 4000K - 1,500lm
  • 22W Integrated LED
    • 3000K - 1,950lm
    • 4000K - 2,130lm

Integrated LED 120/277V System (74 CRI)

  • 22W Integrated LED (Non-Dimmable)
    • 3000K - 1,704lm
    • 4000K - 1,824lm

Medium E26 Sockets Only (Bulbs Sold Separate)

  • E26 Medium Base (1 x 75W Max Incandescent)
  • LED A19 E26 Compatible (1 x 15W Max LED)

Available Options*

  • Photocell (120V Integrated LED Systems Only)

Downloads


t Specifications & Pricing subject to change without notice.

* Fixture manufactured with options are considered custom and all sales are final.

Extra Information

Family:
Beacon
